美制过渡接头

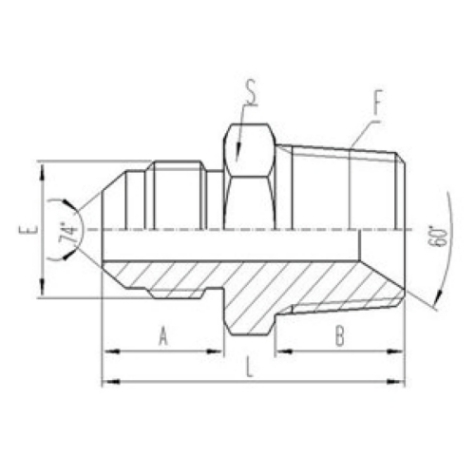

名称：美制JIC螺纹74°锥面密封过渡接头
详细信息
美制JIC螺纹74°锥面密封过渡接头的详细介绍：
|
代 号
|
螺纹 THREAD
|
尺 寸 DIMENSIONS
|
||||
|
PART NO.
|
E
|
F
|
A
|
B
|
S
|
L
|
|
1JT-04SP
|
7/16"X20
|
R1/4"X19
|
14
|
14.5
|
17
|
34.5
|
|
1JT-04-02SP
|
7/16"X20
|
R1/8"X28
|
14
|
10
|
12
|
30
|
|
1JT-04-06SP
|
7/16"X20
|
R3/8"X19
|
14
|
15
|
19
|
35
|
|
1JT-04-08SP
|
7/16"X20
|
R1/2"X14
|
14
|
20
|
24
|
41
|
|
1JT-05-02SP
|
1/2"X20
|
R1/8"X28
|
14
|
10
|
14
|
30.5
|
|
1JT-05-04SP
|
1/2"X20
|
R1/4"X19
|
14
|
14.5
|
17
|
34.5
|
|
1JT-05-06SP
|
1/2"X20
|
R3/8"X19
|
14
|
15
|
19
|
35
|
|
1JT-06-02SP
|
9/16"X18
|
R1/8"X28
|
14
|
10
|
17
|
30.5
|
|
1JT-06-04SP
|
9/16"X18
|
R1/4"X19
|
14
|
14.5
|
17
|
34.5
|
|
1JT-06SP
|
9/16"X18
|
R3/8"X19
|
14
|
15
|
19
|
35
|
|
1JT-06-08SP
|
9/16"X18
|
R1/2"X14
|
14
|
20
|
22
|
41
|
|
1JT-06-12SP
|
9/16"X18
|
R3/4"X14
|
14
|
20
|
30
|
43
|
|
1JT-08-04SP
|
3/4"X16
|
R1/4"X19
|
16.7
|
14.5
|
22
|
39
|
|
1JT-08-06SP
|
3/4"X16
|
R3/8"X19
|
16.7
|
15
|
22
|
39
|
|
1JT-08SP
|
3/4"X16
|
R1/2"X14
|
16.7
|
20
|
22
|
44
|
|
1JT-08-12SP
|
3/4"X16
|
R3/4"X14
|
16.7
|
20
|
30
|
46
|
|
1JT-08-16SP
|
3/4"X16
|
R1"X11
|
16.7
|
25.5
|
36
|
52
|
|
1JT-10-06SP
|
7/8"X14
|
R3/8"X19
|
19.3
|
15
|
24
|
42.5
|
|
1JT-10-08SP
|
7/8"X14
|
R1/2"X14
|
19.3
|
20
|
24
|
46.5
|
|
1JT-10-12SP
|
7/8"X14
|
R3/4"X14
|
19.3
|
20
|
30
|
48.5
|
|
1JT-10-16SP
|
7/8"X14
|
R1"X11
|
19.3
|
25.5
|
36
|
54
|
|
1JT-12-08SP
|
1.1/16"X12
|
R1/2"X14
|
22
|
20
|
30
|
51
|
|
1JT-12SP
|
1.1/16"X12
|
R3/4"X14
|
22
|
20
|
30
|
51
|
|
1JT-12-06SP
|
1.1/16"X12
|
R3/8"X19
|
22
|
15.5
|
30
|
47
|
|
1JT-12-16SP
|
1.1/16"X12
|
R1"X11
|
22
|
25.5
|
36
|
57
|
|
1JT-12-20SP
|
1.1/16"X12
|
R1.1/4"X11
|
22
|
26.5
|
46
|
60
|
|
1JT-14-12SP
|
1.3/16"X12
|
R3/4"X14
|
22.6
|
20
|
32
|
52.5
|
|
1JT-14-16SP
|
1.3/16"X12
|
R1"X11
|
22.6
|
25.5
|
36
|
57.5
|
|
1JT-16-08SP
|
1.5/16"X12
|
R1/2"X14
|
23
|
20
|
36
|
53
|
|
1JT-16-12SP
|
1.5/16"X12
|
R3/4"X14
|
23
|
20
|
36
|
53
|
|
1JT-16-20SP
|
1.5/16"X12
|
R1.1/4"X11
|
23
|
26.5
|
46
|
61
|
|
1JT-16-24SP
|
1.5/16"X12
|
R1.1/2"X11
|
23
|
26.5
|
50
|
65.5
|
|
1JT-16SP
|
1.5/16"X12
|
R1"X11
|
23
|
25.5
|
36
|
58
|
|
1JT-20-12SP
|
1.5/8"X12
|
R3/4"X14
|
24.3
|
20
|
46
|
57
|
|
1JT-20-16SP
|
1.5/8"X12
|
R1"X11
|
24.3
|
25.5
|
46
|
62
|
|
1JT-20SP
|
1.5/8"X12
|
R1.1/4"X11
|
24.3
|
26.5
|
46
|
63
|
|
1JT-20-24SP
|
1.5/8"X12
|
R1.1/2"X11
|
24.3
|
26.5
|
50
|
66.5
|
|
1JT-24SP
|
1.7/8"X12
|
R1.1/2"X11
|
27.5
|
26.5
|
50
|
69.5
|
|
1JT-24-16SP
|
1.7/8"X12
|
R1"X11
|
27.5
|
25.5
|
50
|
67.5
|
|
1JT-24-20SP
|
1.7/8"X12
|
R1.1/4"X11
|
24.3
|
26.5
|
50
|
67.5
|
|
1JT-32SP
|
2.1/2"X12
|
R2"X11
|
34
|
30
|
65
|
80
|
|
1JT-32-24SP
|
2.1/2"X12
|
R1.1/2"X11
|
34
|
26.5
|
65
|
77.5
|
|
1JT-40SP
|
3"X12
|
R2.1/2"X11
|
35.5
|
34
|
80
|
87.5
|
美制JIC螺纹74°锥面密封过渡接头
