代 号

螺纹 THREAD

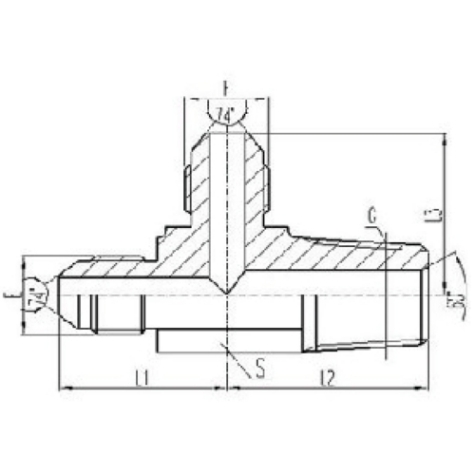

尺 寸 DIMENSIONS

PART NO.

E

F

G

L1

L2

L3

S

AJJT-04-04-02SP

7/16"X20

7/16"X20

R1/8"X28

24.5

21

24.5

11

AJJT-04SP

7/16"X20

7/16"X20

R1/4'X19

26.6

25.5

26.6

14

AJJT-06-06-04SP

9/16"X18

9/16"X18

R1/4'X19

26.9

25.5

26.9

14

AJJT-06SP

9/16"X18

9/16"X18

R3/8"X19

28.5

28.5

28.5

16

AJJT-08-08-06SP

3/4"X16

3/4"X16

R3/8"X19

32

30.5

32

19

AJJT-08SP

3/4"X16

3/4"X16

R1/2"X14

34.8

36

34.8

22

AJJT-10-10-08SP

7/8"X14

7/8"X14

R1/2"X14

37.8

36

37.8

22

AJJT-12SP

1.1/16"X12

1.1/16"X12

R3/4"X14

44.2

43.5

44.2

27

AJJT-16SP

1.5/16"X12

1.5/16"X12

R1"X11

49

50

49

33

AJJT-20SP

1.5/8"X12

1.5/8"X12

R1.1/4"X11

55.5

56.5

55.5

41

AJJT-24SP

1.7/8"X12

1.7/8"X12

R1.1/2"X11

62.5

62.5

62.5

48
