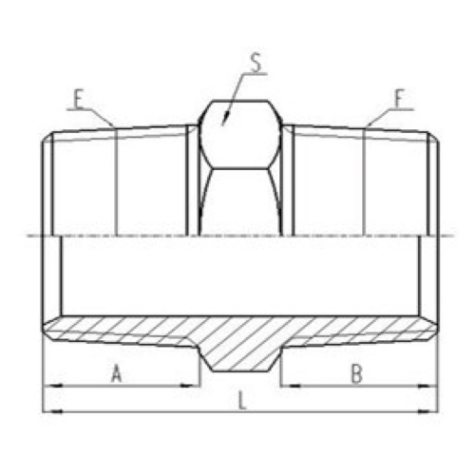

代 号 |
螺纹 THREAD |
尺寸 DIMENSIONS |
||||
|
PART NO. |
E |
F |
A |
B |
L |
S |
|
1N-02 |
Z1/8"X27 |
Z1/8"X27 |
10.5 |
10.5 |
27 |
12 |
|
1N-04 |
Z1/4"X18 |
Z1/4"X18 |
15 |
15 |
35 |
17 |
|
1N-06 |
Z3/8"X18 |
Z3/8"X18 |
16 |
16 |
38 |
19 |
|
1N-08 |
Z1/2"X14 |
Z1/2"X14 |
19.5 |
19.5 |
47 |
22 |
|
1N-12 |
Z3/4"X14 |
Z3/4"X14 |
19.5 |
19.5 |
49 |
27 |
|
1N-16 |
Z1"X11.5 |
Z1"X11.5 |
25.5 |
25.5 |
61 |
36 |
|
1N-20 |
Z1.1/4"X11.5 |
Z1.1/4"X11.5 |
26.5 |
26.5 |
65 |
46 |
|
1N-20-24 |
Z1.1/4"X11.5 |
Z1.1/2"X11.5 |
26.5 |
27.5 |
69 |
50 |
|
1N-24 |
Z1.1/2"X11.5 |
Z1.1/2"X11.5 |
27.5 |
27.5 |
69 |
50 |
|
1N-24-32 |
Z1.1/2"X11.5 |
Z2"X11.5 |
27.5 |
27.5 |
72 |
65 |
|
1N-32 |
Z2"X11.5 |
Z2"X11.5 |
27.5 |
27.5 |
71 |
65 |
