英制过渡接头
英制外螺纹60°内锥面密封或组合垫密封堵头|英制固定内螺纹钢垫密封

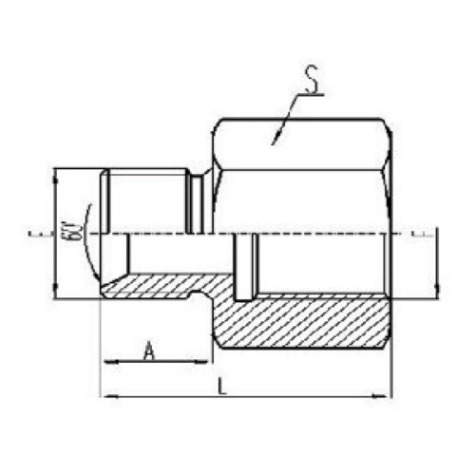

名称:英制外螺纹60°内锥面密封或组合垫密封堵头|英制固定内螺纹钢垫密封

详细信息
英制外螺纹60°内锥面密封或组合垫密封堵头|英制固定内螺纹钢垫密封的详细介绍:


代 号
螺 纹 THREAD
尺 寸 DIMENSIONS
PART NO.
E
F
A
L
S
5B-02-04
G1/8"X28
G1/4"X19
11
32
19
5B-02-06
G1/8"X28
G3/8"X19
11
35
22
5B-04
G1/4"X19
G1/4"X19
12
33
19
5B-04-02
G1/4"X19
G 1/8"X28
12
28.5
19
5B-04-06
G1/4"X19
G3/8"X19
12
36
22
5B-04-08
G1/4"X19
G1/2"X14
12
41
27
5B-04-12
G1/4"X19
G3/4"X14
12
42
36
5B-06
G3/8"X19
G3/8"X19
13.5
37.5
22
5B-06-04
G3/8"X19
G1/4"X19
13.5
35
22
5B-06-08
G3/8"X19
G1/2"X14
13.5
42.5
27
5B-06-12
G3/8"X19
G3/4"X14
13.5
43.5
36
5B-08
G1/2"X14
G1/2"X14
16
45
27
5B-08-06
G1/2"X14
G3/8"X19
16
40
27
5B-08-10
G1/2"X14
G5/8"X14
16
46
30
5B-08-12
G1/2"X14
G3/4"X14
16
46
36
5B-08-16
G1/2"X14
G1"X11
16
51
41
5B-08-20
G1/2"X14
G1.1/4"X11
16
52
50
5B-12
G3/4"X14
G3/4"X14
18.5
48
36
5B-12-08
G3/4"X14
G1/2"X14
18.5
47.5
32
5B-12-16
G3/4"X14
G1"X11
18.5
53.5
41
5B-12-20
G3/4"X14
G1.1/4"X11
18.5
54.5
50
5B-12-24
G3/4"X14
G1.1/2"X11
18.5
56.5
55
5B-16
G1"X11
G1"X11
20.5
55.5
41
5B-16-12
G1"X11
G3/4"X14
20.5
50.5
41
5B-16-20
G1"X11
G1.1/4"X11
20.5
56.5
50
5B-16-24
G1"X11
G1.1/2"X11
20.5
58.5
55
5B-20-16
G1.1/4"X11
G1"X11
20.5
52
50
5B-20-24
G1.1/4"X11
G1.1/2"X11
20.5
58.5
55
5B-24-20
G1.1/2"X11
G1.1/4"X11
23
59
55
英制外螺纹60°内锥面密封或组合垫密封堵头|英制固定内螺纹钢垫密封
×
