英制过渡接头
英制外螺纹60°内锥面密封或组合垫密封|美制JIC外螺纹74°外锥面密封

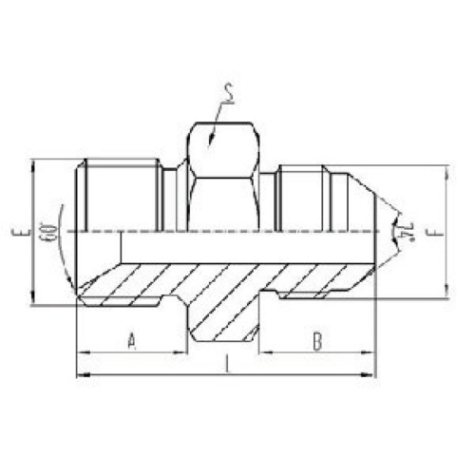

名称:英制外螺纹60°内锥面密封或组合垫密封|美制JIC外螺纹74°外锥面密封

详细信息
英制外螺纹60°内锥面密封或组合垫密封|美制JIC外螺纹74°外锥面密封的详细介绍:


代 号
螺纹 THREAD
尺 寸 DIMENSIONS
PART NO.
E
F
A
B
S
L
1BJ-02-04
G1/8"X28
7/16"X20
10
14
14
30
1BJ-02-05
G1/8"X28
1/2"X20
10
14
14
30
1BJ-02-06
G1/8"X28
9/16"X18
10
14
17
30
1BJ-02-10
G1/8"X28
7/8"X14
10
19.3
24
37.5
1BJ-04
G1/4"X19
7/16"X20
12
14
19
32
1BJ-04-05
G1/4"X19
1/2"X20
12
14
19
32
1BJ-04-06
G1/4"X19
9/16"X18
12
14
19
32
1BJ-04-08
G1/4"X19
3/4"X16
12
16.7
22
36.5
1BJ-04-10
G1/4"X19
7/8"X14
12
19.3
24
39
1BJ-06-04
G3/8"X19
7/16"X20
13.5
14
22
35.5
1BJ-06-05
G3/8"X19
1/2"X20
13.5
14
22
35.5
1BJ-06
G3/8"X19
9/16"X18
13.5
14
22
35.5
1BJ-06-08
G3/8"X19
3/4"X16
13.5
16.7
22
38.5
1BJ-06-10
G3/8"X19
7/8"X14
13.5
19.3
24
41
1BJ-06-12
G3/8"X19
1.1/16"X12
13.5
22
30
45
1BJ-08-04
G1/2"X14
7/16"X20
16
14
27
40
1BJ-08-05
G1/2"X14
1/2"X20
16
14
27
40
1BJ-08-06
G1/2"X14
9/16"X18
16
14
27
40
1BJ-08
G1/2"X14
3/4"X16
16
16.7
27
43
1BJ-08-10
G1/2"X14
7/8"X14
16
19.3
27
45.5
1BJ-08-12
G1/2"X14
1.1/16"X12
16
22
30
48
1BJ-08-14
G1/2"X14
1.3/16"X12
16
22.6
32
49.5
1BJ-10-08
G5/8"X14
3/4"X16
17.5
16.7
30
44
1BJ-10
G5/8"X14
7/8"X14
17.5
19.3
30
47
1BJ-10-12
G5/8"X14
1.1/16"X12
17.5
22
30
49.5
1BJ-10-16
G5/8"X14
1.5/16"X12
17.5
23
36
51.5
1BJ-12-08
G3/4"X14
3/4"X16
18.5
16.7
32
46.5
1BJ-12-10
G3/4"X14
7/8"X14
18.5
19.3
32
49
1BJ-12
G3/4"X14
1.1/16"X12
18.5
22
32
51.5
1BJ-12-14
G3/4"X14
1.3/16"X12
18.5
22.6
32
52
1BJ-12-16
G3/4"X14
1.5/16"X12
18.5
23
34
52.5
1BJ-16-10
G1"X11
7/8"X14
20.5
19.3
41
53
1BJ-16-12
G1"X11
1.1/16"X12
20.5
22
41
55.5
1BJ-16-14
G1"X11
1.3/16"X12
20.5
22.6
41
56
1BJ-16
G1"X11
1.5/16"X12
20.5
23
41
57
1BJ-16-20
G1"X11
1.5/8"X12
20.5
24.3
46
58
1BJ-16-24
G1"X11
1.7/8"X12
20.5
27.5
50
63
1BJ-20-12
G1.1/4"X11
1.1/16"X12
20.5
22
46
55.5
1BJ-20-16
G1.1/4"X11
1.5/16"X12
20.5
23
50
60.5
1BJ-20
G1.1/4"X11
1.5/8"X12
20.5
24.3
50
62
1BJ-20-24
G1.1/4"X11
1.7/8"X12
20.5
27.5
50
63
1BJ-24-20
G1.1/2"X11
1.5/8"X12
23
24.3
55
62.5
1BJ-24
G1.1/2"X11
1.7/8"X12
23
27.5
55
67.5
1BJ-24-32
G1.1/2"X11
2.1/2"X12
23
34
65
74
1BJ-32-24
G2"X11
1.7/8"X12
25.5
27.5
70
70
1BJ-32
G2"X11
2.1/2"X12
25.5
34
70
77.5
注:螺母及衬套需另行订货。管子直径D为公制时,配用螺母及衬套分别选用ENB200、ENB500。管子直径为英制时,配用螺母及衬套分别选用ENB200、ENB300。
