代 号

螺纹 THREAD

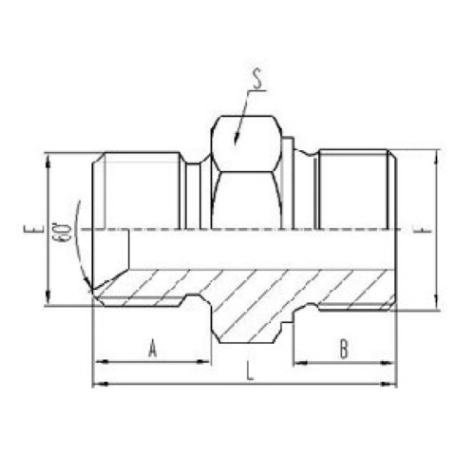

尺 寸 DIMENSIONS

PART NO.

E

F

A

B

S

L

1BL-02-10

G1/8"X28

M10X1

11

8

17

25

1BL-04-10

G1/4"X19

M10X1

12

8

17

26

1BL-04-14

G1/4"X19

M14X1.5

12

12

19

30

1BL-06-14

G3/8"X19

M14X1.5

13.5

12

19

31.5

1BL-06-16

G3/8"X19

M16X1.5

13.5

12

22

33.5

1BL-06-18

G3/8"X19

M18X1.5

13.5

12

24

33.5

1BL-08-20

G1/2"X14

M22X1.5

16

14

27

33.5

1BL-08-22

G1/2"X14

M22X1.5

16

14

27

41

1BL-12-22

G3/4"X14

M22X1.5

18.5

14

30

42.5

1BL-12-27

G3/4"X14

M27X2

18.5

16

36

45.5

1BL-16-27

G1"X11

M27X2

20.5

16

36

47.5

1BL-16-33

G1"X11

M33X2

20.5

18

41

52

1BL-20-42

G1.1/4"X11

M42X2

20.5

20

50

57.5
