英制过渡接头

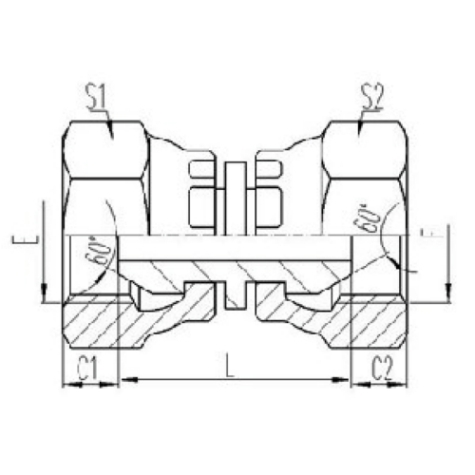

名称：两端英制活动内螺纹60°外锥面密封
详细信息
两端英制活动内螺纹60°外锥面密封的详细介绍：
|
代号
|
螺纹 THREAD
|
尺 寸 DIMENSIONS
|
|||||
|
PART NO.
|
E
|
F
|
C1
|
C2
|
S1
|
S2
|
L
|
|
3B-02
|
G 1/8" X28
|
G 1/8" X28
|
5.5
|
5.5
|
14
|
14
|
20
|
|
3B-02-04
|
G 1/8" X28
|
G1/4" X19
|
5.5
|
5.5
|
14
|
19
|
23
|
|
3B-04
|
G1/4" X19
|
G1/4" X19
|
5.5
|
5.5
|
19
|
19
|
25
|
|
3B-04-06
|
G1/4" X19
|
G3/8" X19
|
5.5
|
6.3
|
19
|
22
|
26
|
|
3B-04-08
|
G1/4" X19
|
G1/2" X14
|
5.5
|
7.5
|
19
|
27
|
28
|
|
3B-06
|
G3/8" X19
|
G3/8" X19
|
6.3
|
6.3
|
22
|
22
|
29
|
|
3B-06-08
|
G3/8" X19
|
G1/2" X14
|
6.3
|
7.5
|
22
|
27
|
30
|
|
3B-08
|
G1/2" X14
|
G1/2" X14
|
7.5
|
7.5
|
27
|
27
|
32
|
|
3B-08-10
|
G1/2" X14
|
G5/8" X14
|
7.5
|
9.5
|
27
|
30
|
32.5
|
|
3B-08-12
|
G1/2" X14
|
G3/4" X14
|
7.5
|
10.9
|
27
|
32
|
33
|
|
3B-10
|
G5/8" X14
|
G5/8" X14
|
9.5
|
9.5
|
30
|
30
|
33
|
|
3B-10-12
|
G5/8" X14
|
G3/4" X14
|
9.5
|
10.9
|
30
|
32
|
33.5
|
|
3B-12
|
G3/4" X14
|
G3/4" X14
|
10.9
|
10.9
|
32
|
32
|
34
|
|
3B-12-16
|
G3/4" X14
|
G1" X11
|
10.9
|
11.7
|
32
|
41
|
35.5
|
|
3B-16
|
G1" X11
|
G1" X11
|
11.7
|
11.7
|
41
|
41
|
36.5
|
|
3B-20
|
G1.1/4"X11
|
G1.1/4"X11
|
11
|
11
|
50
|
50
|
42
|
|
3B-24
|
G1.1/2"X11
|
G1.1/2"X11
|
13
|
13
|
55
|
55
|
43
|
|
3B-32
|
G2" X11
|
G2" X11
|
16
|
16
|
70
|
70
|
49
|
两端英制活动内螺纹60°外锥面密封
