代 号

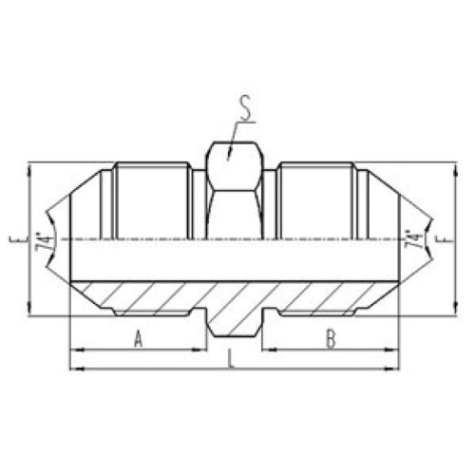

螺 纹 THREAD

尺寸 DIMENSIONS

PART NO.

E

F

A

B

L

S

1Q-10

M10X1

M10X1

12

12

30

12

1Q-12

M12X1.5

M12X1.5

15.7

15.7

37.5

14

1Q-14

M14X1.5

M14X1.5

17

17

40

17

1Q-16

M16X1.5

M16X1.5

18

18

42

17

1Q-18

M18X1.5

M18X1.5

18

18

42

19

1Q-22

M22X1.5

M22X1.5

19.5

19.5

47

24

1Q-24

M24X1.5

M24X1.5

20

20

50

27

1Q-27

M27X1.5

M27X1.5

20

20

50

30

1Q-30

M30X1.5

M30X1.5

23

23

57

32

1Q-30E

M30X2

M30X2

26

26

63

32

1Q-33

M33X2

M33X2

26

26

63

36

1Q-36

M36X2

M36X2

26

26

63

38

1Q-39

M39X2

M39X2

26

26

65

41

1Q-42

M42X2

M42X2

28.5

28.5

70

46

1Q-45

M45X2

M45X2

28.5

28.5

70

46
