代 号

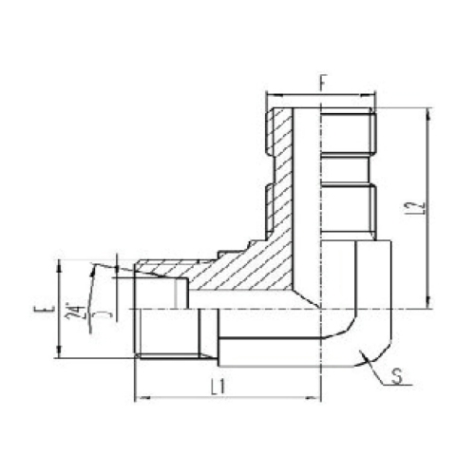

螺 纹 THREAD

管子外径 TUBE O.D

尺 寸 DIMENSIONS

PART NO.

E

F

D

L1

L2

S

1CO9-12-04OG

M12X1.5

7/16"X20

6

20

27.2

11

1CO9-14-06OG

M14X1.5

9/16" X18

8

22.5

31.8

14

1CO9-16-06OG

M16X1.5

9/16" X18

10

24.5

33.3

16

1CO9-18-08OG

M18X1.5

3/4"X16

12

26

37.5

19

1CO9-22-10OG

M22X1.5

7/8"X14

15

29

44

22

1CO9-22-08OG

M22X1.5

3/4"X16

15

29

39.5

22

1CO9-26-12OG

M26X1.5

1.1/16"X12

18

33

51

27

1CO9-30-12OG

M30X2

1.1/16"X12

22

36.8

53.5

30

1CO9-36-12OG

M36X2

1.1/16"X12

28

41

57.5

36

1CO9-36-16OG

M36X2

1.5/16"X12

28

40.8

57.5

36

1CO9-45-20OG

M45X2

1.5/8"X12

35

49.7

63

48

1CO9-52-24OG

M52X2

1.7/8"X12

42

55.8

70.5

55
