英制管接头

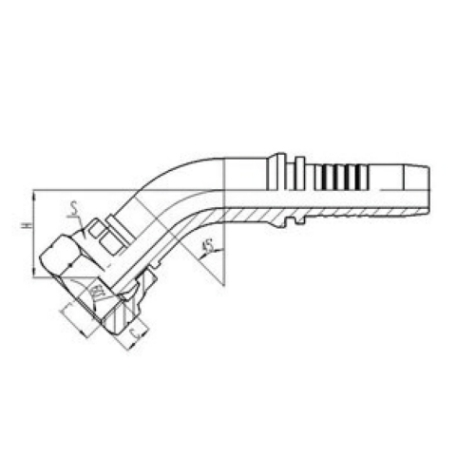

45°英制内螺纹60°外锥面密封

名称:45°英制内螺纹60°外锥面密封

详细信息
45°英制内螺纹60°外锥面密封的详细介绍:


纹 E

胶管 HOSE BORE

寸 DIMENSIONS

PART NO.

THREAD E

公称内径 DN

标号 DASH

C

S

H

22641-04-04

G1/4"X19

6

04

5.5

19

20.2

22641-06-06

G3/8"X19

10

06

6.3

22

22.6

22641-08-08

G1/2"X14

12

08

7.5

27

26.1

22641-10-10

G5/8"X14

16

10

9.5

30

27.8

22641-12-12

G3/4"X14

20

12

10.9

32

31.8

22641-16-16

G1"X11

25

16

11.7

41

34.2

22641-20-20

G1.1/4"X11

32

20

11

50

40

22641-24-24

G1.1/2"X11

38

24

13

55

44.8

22641-32-32

G2"X11

51

32

16

70

54.1

注: 1、表中代号用于编织软管; 2、如需用于缠绕软管代号改为 2264 2-xx-xx;
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 2264 2-xx-xx;

×
