美制过渡接头
美制布锥管螺纹密封过渡接头

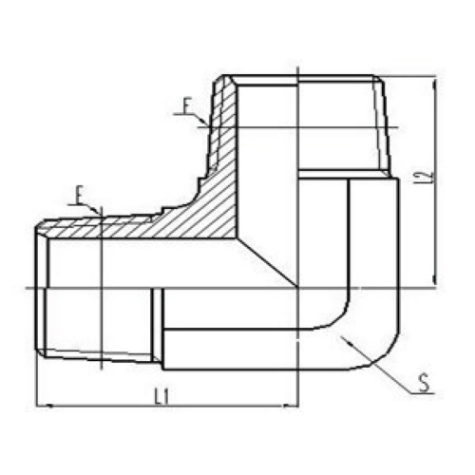

名称:美制布锥管螺纹密封过渡接头

详细信息
美制布锥管螺纹密封过渡接头的详细介绍:


代 号
螺纹 THREAD
尺 寸 DIMENSIONS
PART NO.
E
F
S1
L
7N-02
Z1/8" X27
Z1/8" X27
17
24
7N-02-04
Z1/8" X27
Z1/4" X18
19
27
7N-02-06
Z1/8" X27
Z3/8" X18
22
30
7N-04
Z1/4" X18
Z1/4" X18
19
29
7N-04-06
Z1/4" X18
Z3/8" X18
22
31
7N-04-08
Z1/4" X18
Z1/2" X14
30
35
7N-04-12
Z1/4" X18
Z3/4" X14
36
39.5
7N-06
Z3/8" X18
Z3/8" X18
22
29
7N-06-08
Z3/8" X18
Z1/2" X14
30
38
7N-06-12
Z3/8" X18
Z3/4" X14
36
40
7N-08
Z1/2" X14
Z1/2" X14
30
38
7N-08-12
Z1/2" X14
Z3/4" X14
36
43
7N-12
Z3/4" X14
Z3/4" X14
36
39
7N-12-16
Z3/4" X14
Z1" X11.5
41
45.5
7N-16
Z1" X11.5
Z1" X11.5
41
48
7N-20
Z1.1/4"X11.5
Z1.1/4"X11.5
50
49
7N-24
Z1.1/2"X11.5
Z1.1/2"X11.5
60
49
7N-32
Z2"X11.5
Z2"X11.5
70
50
美制布锥管螺纹密封过渡接头
×
