代 号

螺 纹 THREAD

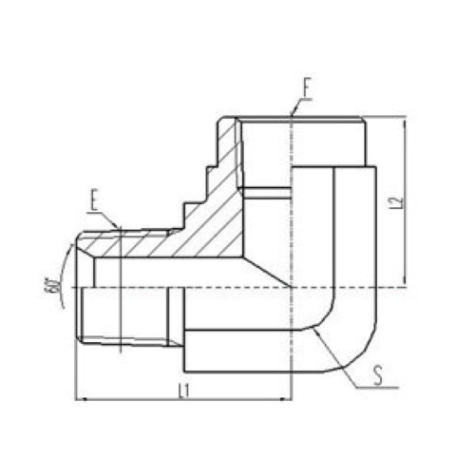

尺 寸 DIMENSIONS

PART NO.

E

F

L1

L2

S

1N9-02

Z1/8"X27

Z1/8"X27

21

21

11

1N9-02-04

Z1/8"X27

Z1/4"X18

23.5

25.5

14

1N9-04

Z1/4"X18

Z1/4"X18

25.5

25.5

14

1N9-04-06

Z1/4"X18

Z3/8"X18

28

31

19

1N9-04-08

Z1/4"X18

Z1/2"X14

30.5

36.5

22

1N9-06

Z3/8"X18

Z3/8"X18

31

31

19

1N9-06-08

Z3/8"X18

Z1/2"X14

33.8

37.3

22

1N9-08

Z1/2"X14

Z1/2"X14

37.3

37.3

22

1N9-08-12

Z1/2"X14

Z3/4"X14

40

44

27

1N9-12

Z3/4"X14

Z3/4"X14

44

44

27

1N9-16

Z1"X11.5

Z1"X11.5

50

50

33

1N9-20

Z1.1/4"X11.5

Z1.1/4"X11.5

53

53

41

1N9-24

Z1.1/2"X11.5

Z1.1/2"X11.5

63

63

48

1N9-32

Z2"X11.5

Z2"X11.5

68

68

63
